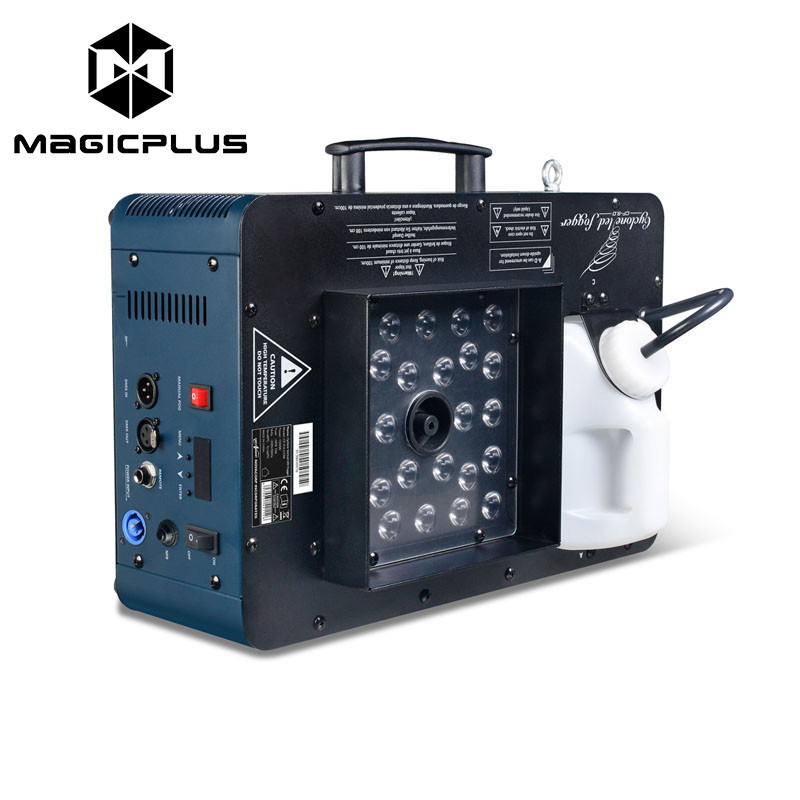

Design features:
1. a variety of LED special effect programs are built in, so that the LED lamp can show more fancy styles with the air column, such as flame, explosion, water grain and other special effects. In DMX mode, LED lights can be independently lit when no smoke is emitted, and can be used as LED effect lights.
2. when lifting mp-9.0 upside down, simply loosen the oil barrel fixing ring and the oil barrel bottom plate to change the position of the oil barrel.
3. the special standing stop function and powerful explosive force make mp-9.0 show the effect similar to CO2.
4. there is a liquid level display window on the machine body, which can simply see whether the oil drum needs refueling.
5. the machine can be equipped with up (overhead) spray, down spray or front spray.
6. with built-in DMX, there are 6 DMX control modes to choose from, namely 1-channel, 2-channel, 3-channel, 5-channel, 7-channel and 9-channel, which can be easily controlled by any DMX director.
7. the machine body has a manual smoke spraying function, which can take priority over any control mode.
8. the high-efficiency integrated heating module design is not easy to be blocked and can be directly grounded, but it will not affect the normal use of the temperature sensing system and DMX control circuit, and there will be no danger of electric shock due to human touch.
9. large smoke output, about 40000 cu Amazing smoke output of ft/min.
10. sensitive electronic temperature sensing system (ETS) – the electronic temperature sensing system enables the heater to maintain a certain temperature at any time during each smoke spraying cycle, making the thermal cycle faster.
11. multiple safety protection; In addition to the iron shell protection, the aluminum ingot is provided with double temperature control protection to make the machine safer.
12. use the wireless remote control rc-4cb to control. The simple and humanized design makes mp-9.0 easier to use.
Technical parameter:
Specification and model | MP-9.0 |
Voltage | AC220V ~ 240V,50Hz |
Power | 1500W |
Heating time | 9min |
Smoke volume | 40000 |
Oil drum capacity | 2.5L |
Control mode | DMX512, remote control, built-in manual |
DMX channel | 1-channel, 2-channel, 3-channel, 5-channel, 7-channel, 9-channel |
Machine size (mm) | 419 x 315 x 206 |
Package size | |
Net weight | 9.5kg |
Gross weight |
Effects video

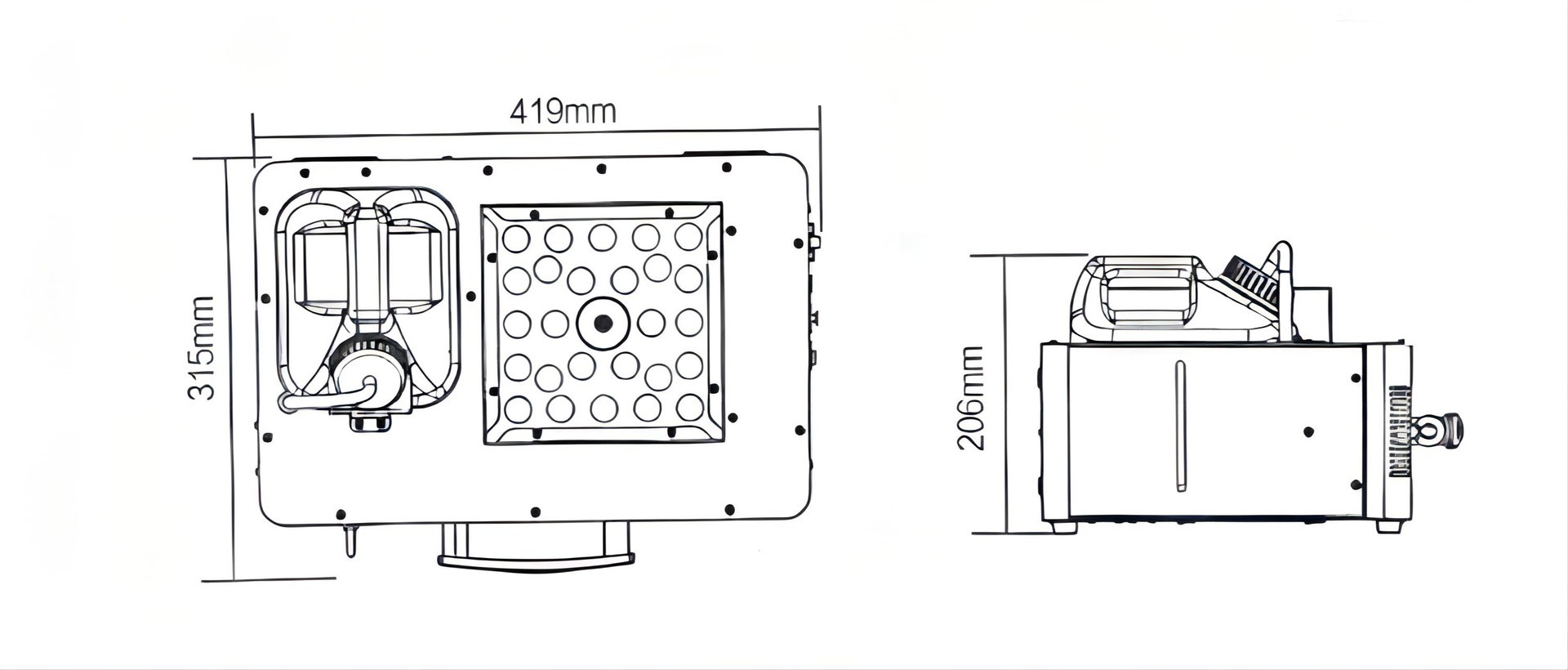

Product size(mm)
