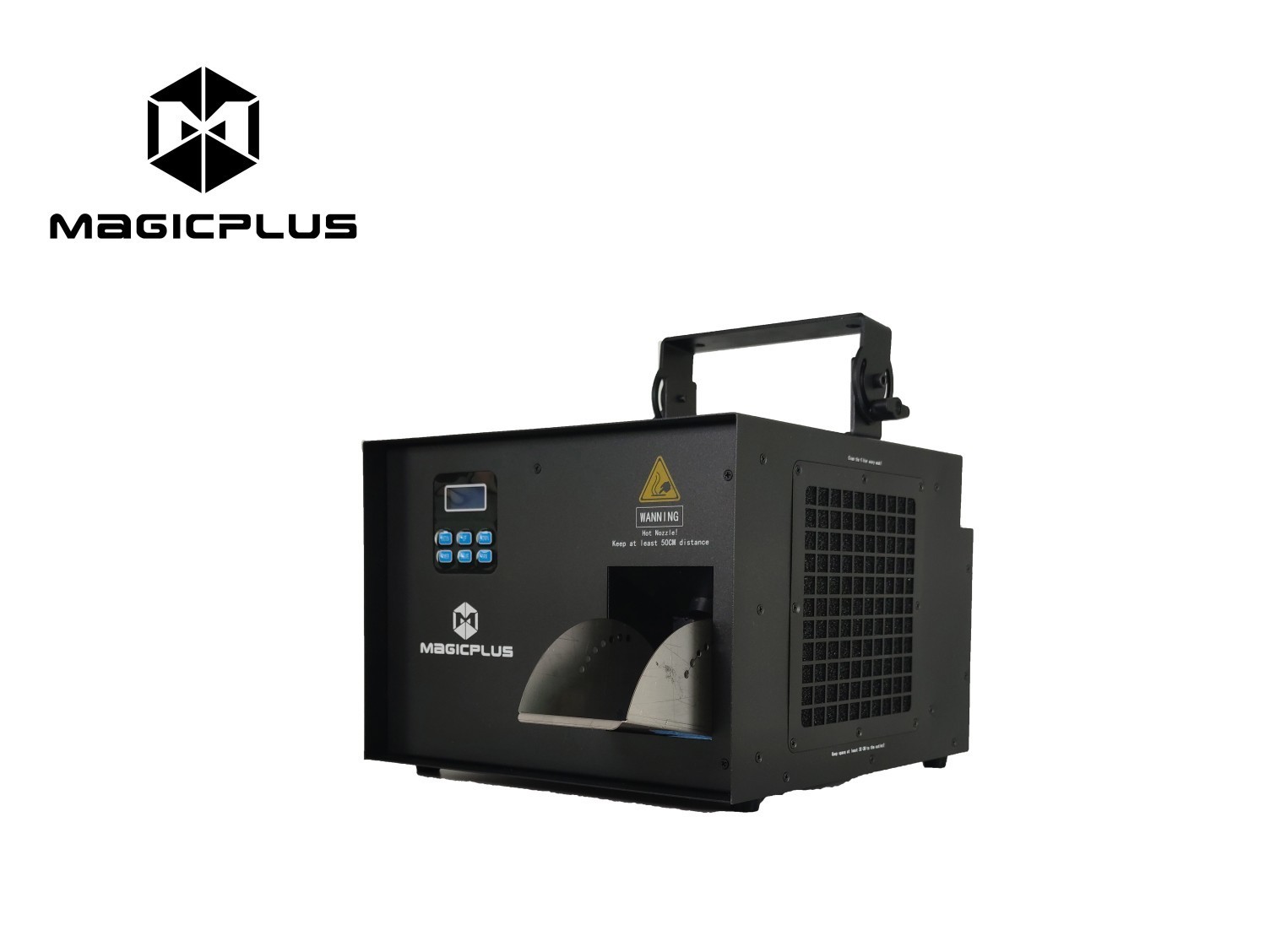

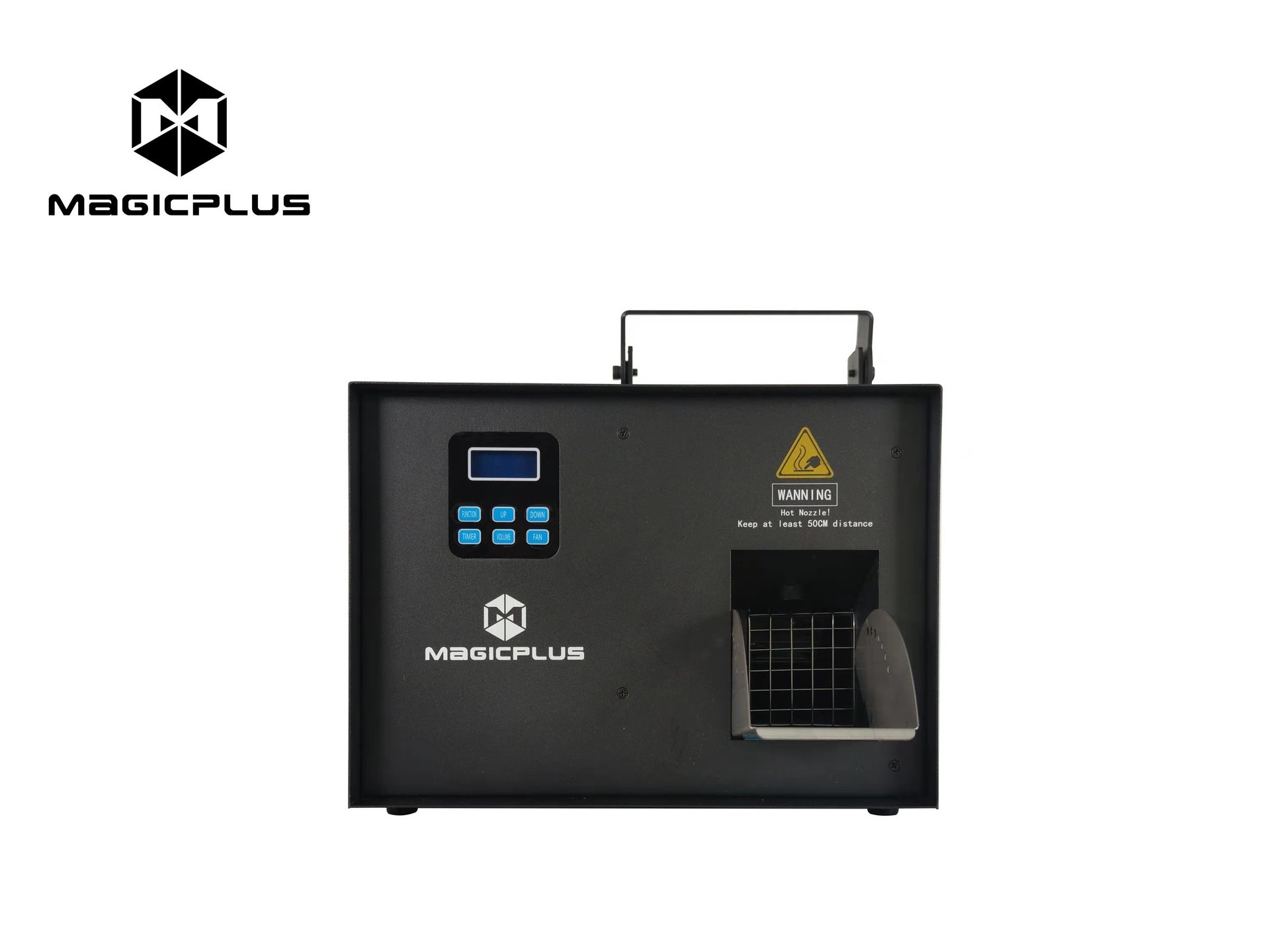

Product description:
1. high power 1350W imported heating components are used to reduce the heating time by several times, and the heating can be completed in 20 seconds;
2. the smoke pipe adopts 316 stainless steel Ba seamless pipe technology with coarser outer diameter. The high durability pipe surface is smooth and not easy to remain. The latest brazing technology is adopted to make the thermal response faster and the temperature more stable.
3. electronic constant temperature technology is adopted, which will not cause odor due to out of control temperature. 100% smoke oil is completely burned, and it is very dry and low temperature, which is more environmentally friendly and healthy.
4. take the lead in adopting replaceable PM2.5 air filter screen cover to make the air entering the smoke pipe more pure and avoid the risk of accelerated blockage of dust mixed with mist and oil in the air;
5. the new oil pump control technology enables the machine to smoothly and continuously output smoke even at the minimum amount of smoke;
6. support wireless remote control, with stronger adaptability;
7. multiple safety monitoring modes, different component damage displays different fault codes, making maintenance more convenient and fast; In addition to the electronic temperature control heater, mechanical temperature protection is added to prevent the continuous high-temperature heating caused by the damage of the main board; The main engine has canceled the safety tube and adopted the recoverable overload protector, which is safer to use and easier to maintain;
8. the structure design of the whole machine is reasonable, and the circuit is completely isolated from the air path. There is no need to worry about the occurrence of leakage, short circuit, out of control and other faults caused by the condensation of fog oil on the circuit board for a long time;
9. built in multi-functional operation control; There are built-in time control, manual smoke control and continuous smoke control;
10. the original automatic cleaning mode, which can be manually or remotely controlled by DMX512, makes the maintenance more convenient;
11. the electronic mist oil protection design is adopted. When the machine detects that there is no oil, the machine automatically enters the protection state to prevent damage caused by long-time dry pumping of the oil pump. After adding mist oil, it is not necessary to restart or operate the machine. The protection function can be quickly and remotely removed through DMX512;
12. the unique theater mode can automatically turn off the air pump and standby wind speed 60 seconds after stopping smoking, so as to reduce the noise;
13. digital liquid crystal display is adopted, which is more powerful, simpler, more convenient and more humanized;
14. DMX-512 signal control, 3 channels in total;
Technical parameter:
Model | MP-1500S |
Voltage | AC 220V~240V,50Hz |
Current limiting protection | Fuse free overload protector (NFB 10a) |
Power (W) | 1500W |
Control mode | DMX 512, remote control purchase, LED panel control |
DMX channel | 3 |
Preheating time | 20S |
Smoke output | 15000 cuft/min |
Tank volume | 4 L |
Use consumables | MP-04A |
Machine size (mm) | 344x375x326 |
Carton size (mm) | 445X390X350 |
Net weight | 10KG |
Gross weight | 12KG |

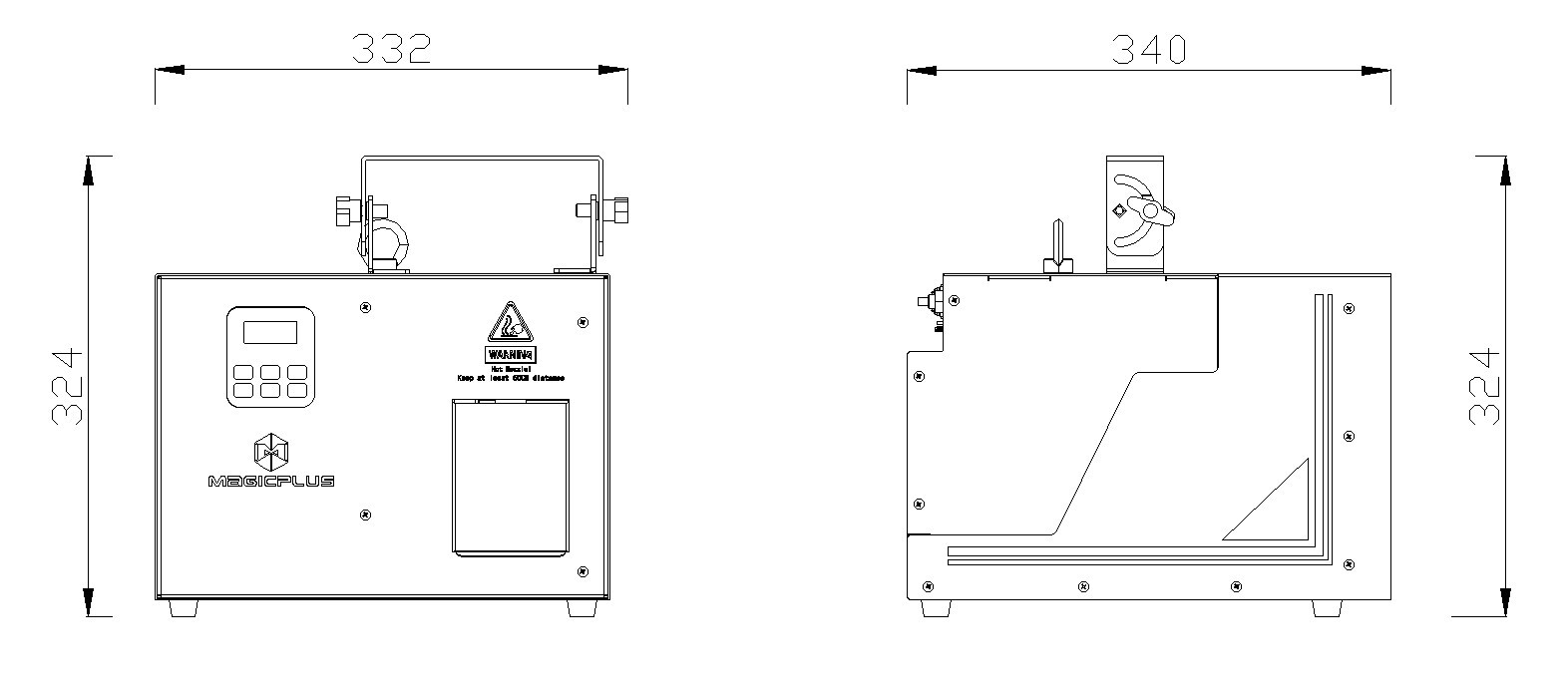

Product size(mm)
