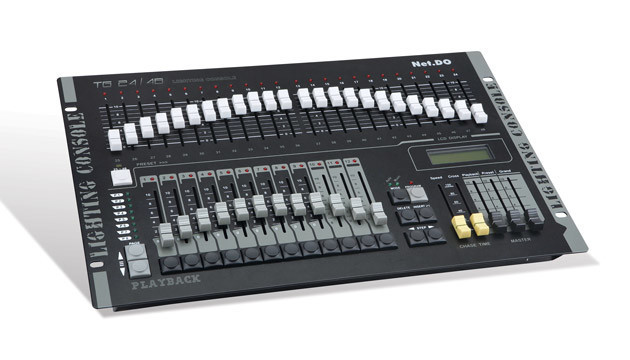

Tg24 / 48 dimming console has stable performance. Its core microcomputer adopts new technology, which makes it obtain stronger and more humanized functions.
Dmx512/1990 standard, photoelectric isolation signal output;
24 / 48 dimming channels;
24 sub control levers, 12 centralized control levers (8 pages);
There are 24 programmable light walking programs, and each light walking program has a maximum of 120 steps;
Light walking speed, automatically (0.3s~180s/ step) or triggered by following the music rhythm;
Cross brightness gradient control;
Music signal can be input by audio line (-10~+10db adaptive) or picked up by internal microphone;
Centralized control inching;
Shutdown data hold.
Specification parameters:
Model | TG24 | TG48 |
Dmx512/1990 signal output | have | have |
Number of DMX512 channels that can be controlled | 24 | 48 |
Number of dimming channels | 24 | 48 |
Number of centralized control push rods | 12 | 12 |
Centralized control page | 8 | 8 |
Number of scenes | 96 | 96 |
Number of lighting procedures | 24 | 24 |
Maximum steps per light walk | 120 | 120 |
Running light speed range | 0.03 seconds ~180 seconds | |
Synchronous triggering mode of running lamp | Auto, music | |
Walking light direction control | Forward / reverse direction | |
Music control signal input | Unbalanced line level input (1/4 "mono socket) / internal microphone pickup | |
DMX512 output interface | Photoelectric isolation output interface | |
Power Supply | Switching power supply, voltage 100~240v (AC), 50/60hz | |
Power | 5W | |
Size | 482mm x 310mm x 95mm |
