Functional features

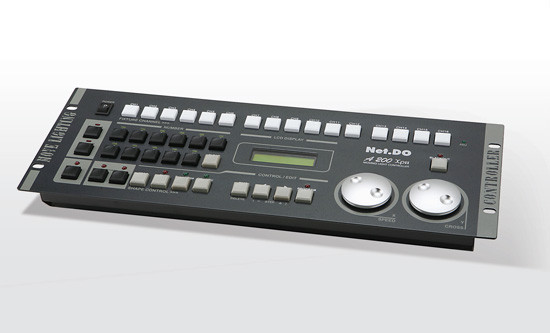

The a200xp2 computer light console can control 11 DMX512 devices with the largest 16 channels at the same time, and the x/y high-precision control of 16bit. Its core microcomputer adopts new technology, which makes it obtain stronger and more humanized functions.
The computer lamp can realize the superimposed operation of scene, light walking program and lantern operation, and realize diversified combination effects.
It can simultaneously control 11 lamps with the largest 16 channels, and 16bit x/y high-precision control.
X/y control channels can be set for different types of lamps, and x/y runner can be used for unified control.
The console can store 22 lighting programs, and each program can be set up to 100 steps at most. The total number of steps in the lighting procedure is 600, which is automatically and dynamically distributed by the console.
It can run one lighting program and 11 preset scenes at the same time, and can carry out lighting operation on 11 computer lights at the same time.
It is equipped with a graphic track control function to facilitate the user to control the graphic track of the computer light, such as drawing a circle, drawing a line, walking 8 characters, waves and other effects.
Adopt photoelectric isolation DMX output port to protect the safe operation of the console.
Model | A200 Xp2 |
Dmx512/1990 signal output | have |
Number of DMX512 channels that can be controlled | 176 |
Can control the maximum number of computer lights | 11 |
Maximum available control channels per computer lamp | 16 |
X/y control accuracy | 16bit |
Number of scenarios directly invoked | 11 |
Number of lighting procedures | 22 |
Maximum steps per light walk | 100 |
Running light speed range | 0.03 seconds ~180 seconds |
Synchronous triggering mode of running lamp | automatic |
Walking light direction control | Forward / reverse direction |
Graphic trace control function (SPAPE) | have |
LCD display | have |
DMX512 output interface | Photoelectric isolation output interface |
Power Supply | Switching power supply, voltage range 100~240vac, frequency 50/60 |
Power | 4W |
Size | 482mm x 178mm x 70mm |
