Design features:
Safe and reliable
The equipment is designed with a new generation of materials, which not only realizes rapid spray, but also adopts higher temperature alloy materials in the design of feeding and screw rod transmission, so as to avoid jamming to the greatest extent. The whole shell is made of aluminum alloy metal materials, which is more safe and reliable.
Easy operation
In addition to DMX512 control, this machine can use remote control to control heating, spraying, cleaning and other functions;
Environmental protection and safety
Using environmentally friendly formula consumables, no gunpowder formula safe, low temperature, smoke-free, no pungent taste.
Technological innovation
Industrial innovative design: 1 Remote control heating; 2. maintenance and cleaning without opening the cover, 3 Built in protection program, it will automatically close after a single continuous spray for more than 30 seconds; 4. high temperature protection is designed inside the machine. Avoid high temperature damage caused by filter screen blockage; 5. fan failure protection to avoid spontaneous combustion of the machine caused by blower failure.
Consumables precautions
1) If the consumables are accidentally ignited, they can only be covered with sand, isolated from the air until extinguished. Do not use water.
2) Consumables shall be stored in a dry and sealed environment to prevent moisture.
3) The consumables are classified as: small consumables: the spray height is 1.0-3.0m (with an error of 0.5m), and the ejected light points do not fall off the ground. Medium sized consumables: the spray height is 2-4 meters (with an error of 0.5 meters), and the sprayed light spots rarely fall to the ground. Large consumables: the spray height is 2-5M (with an error of 0.5m), and the ejected light spot falls to the ground.
4) If less spray is found, it may be due to insufficient consumables. Please add consumables.
Method of cleaning consumables
1) After use, please turn over the sprayer to dump the remaining materials and store them in dry and sealed containers.
2) After the residual material is poured out, it shall be heated again and sprayed until no spark is sprayed, so as to remove the residual material in the pipeline of the sprayer. In case of affecting the next spray effect or even damaging the fuselage. (Note: problems caused by improper cleaning will not be covered by the free warranty)
Warnings and safety precautions
1) The spraying time shall not exceed 30 seconds each time. Too long continuous spraying time will lead to sharp internal temperature rise and permanent damage. After a single long-time spraying, the next spraying shall be carried out after a short pause.
2) The sprayer will turn off automatically after continuous spraying for more than 30 seconds. If you need to continue, you can trigger the spraying function again.
3) A single standard sprayer power supply (the opposite power line of the sprayer) can only be connected to 6 sprayers in series at most, and too much serial connection will cause damage or fire.
4) If there is no spark at the spray nozzle during use, if there is enough powder in the material box, the gear may be stuck. Turn off the preheating, manually loosen the gear until the gear rotates smoothly, then pour out the powder in the material box for heating spray, spray out the residual powder in the pipe, and then add the powder for heating and spray again. If the problem is not solved, contact the after-sales service.
5) Do not cut off the power immediately after the spraying, turn off the heating, and let the cooling fan extract the hot air inside the machine when the machine is powered on, otherwise the internal heat will be quickly transferred to the surface of the casing.
6) The operator shall be 3-5M away from the sprayer.
7) Please ensure that the equipment is turned off before feeding.
8) If the consumables are accidentally ignited, please use sand to extinguish them. Do not use water.
9) Please store the consumables in a cool, dry and sealed environment.
10) Damage caused by improper use or human factors is not covered by the warranty.
11) The company reserves the right of final interpretation.
Technical parameter:

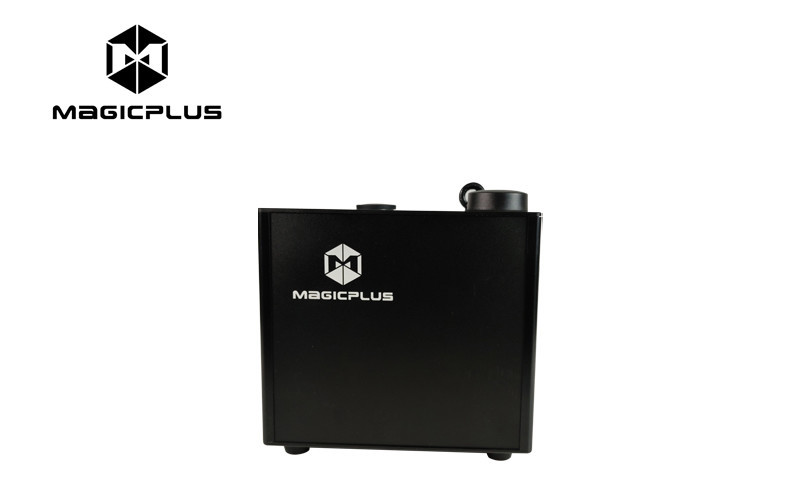

Model | MP-05D |
Voltage | AC 220~240V,50Hz,3A |
Power | 650W |
Spray height | 1- 5 m |
Operating temperature (C °) | -10℃-50℃ |
Control mode | DMX 512, remote control |
Spray pattern | Down spray |
DMX channel | 2 |
Silo volume (g) | 150 |
Machine dimensions | 185*185*252mm |
Net weight | 5.9kg |
